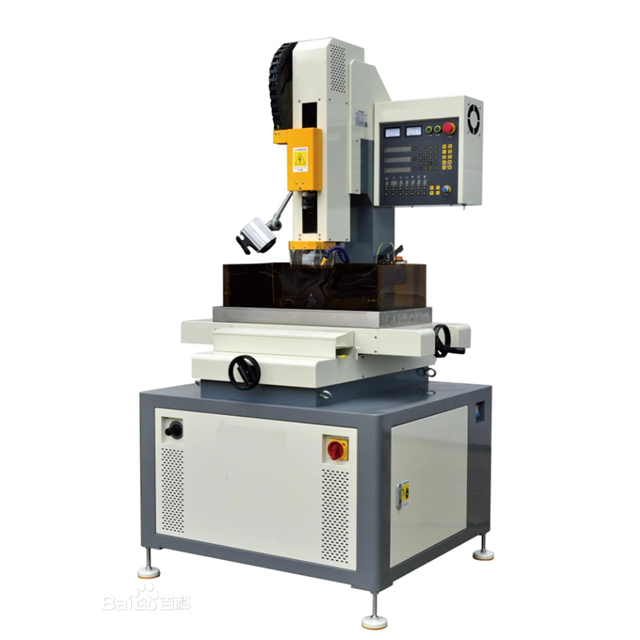

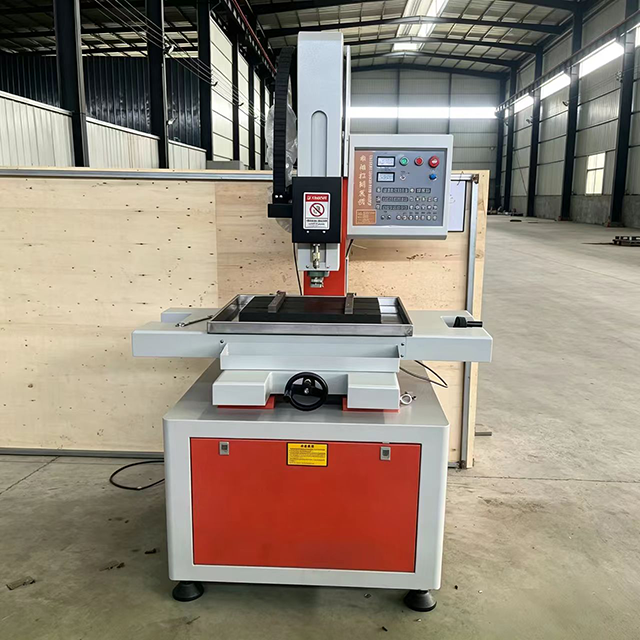

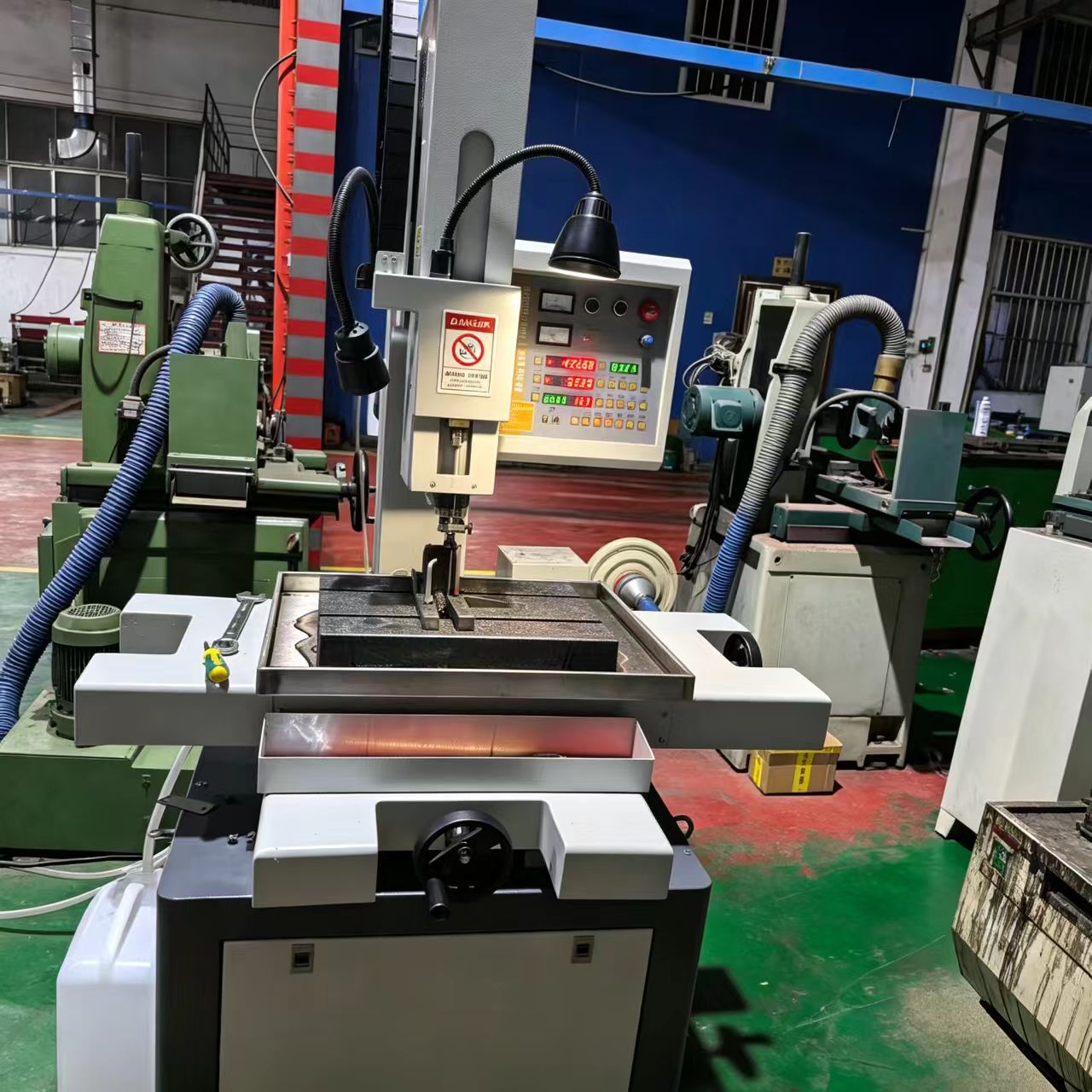

An EDM (Electrical Discharge Machining) hole-drilling machine—also known as an EDM small-hole machine or fine-hole EDM machine—operates by using a thin, vertically reciprocating copper tube (acting as the electrode) to remove metal from a workpiece through pulsed spark discharges. Unlike wire-cut EDM machines or sinker EDM machines, this type of machine employs a hollow copper rod as the electrode; the working fluid flows through the central bore of the rod, serving to cool the area and flush away debris.

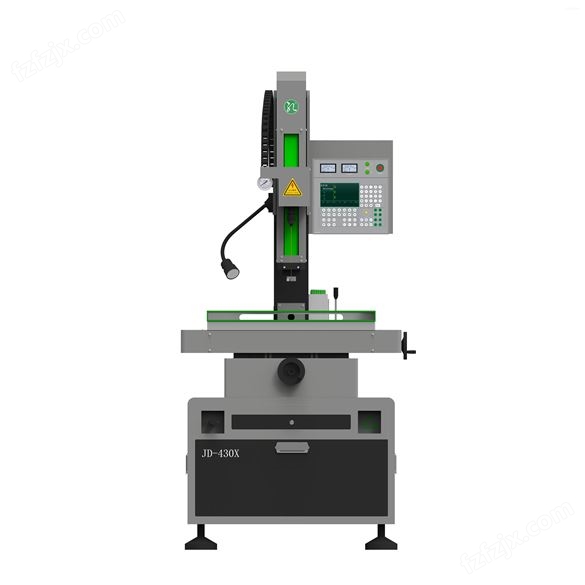

The JD-430X practical multi-axis drilling machine is a piece of equipment designed for drilling holes in materials such as metal sheets, plastic panels, and wooden boards. It typically consists of a machine frame, a drive system, multiple axes (usually oriented perpendicular to the workpiece surface), and cutting tools.
430X main technical parameters and configuration | |
Stroke X*Y (mm) | 400*300 |
Machining aperture (mm) | φ0.3~3.0 |
Machine Dimensions (mm) | 1100*1100*2100 |
Machine weight (kg) | 650 |
Machine tool load (kg) | 300 |
Spindle servo stroke (mm) | 380 |
Secondary stroke (mm) | 300 |
Workpiece Height and Low (mm) | 300 |
Maximum spindle speed (rpm) | 1200 |
Maximum output power (kw) | 4.2 |
Maximum working current (A) | 30 |
Maximum Operating Pressure (MPA) | 7 |
Slide structure | Line rail |
Box | Steel structure |
