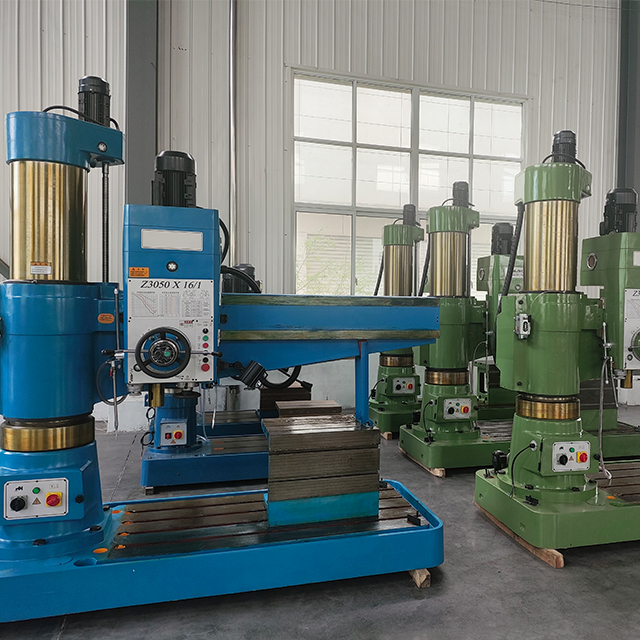

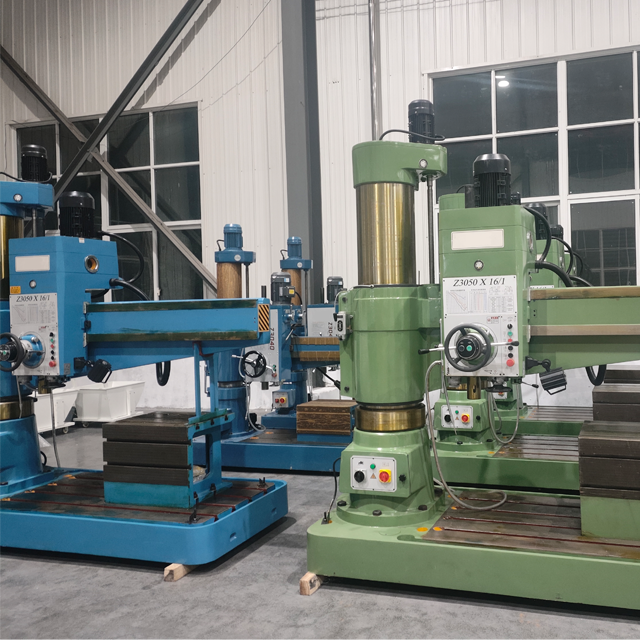

The hydraulic radial drilling machine is a type of industrial radial drill primarily utilized for the multi-process machining of medium-to-large-sized workpieces—including drilling, hole enlarging, reaming, boring, and tapping. It is widely applied in fields such as mechanical manufacturing, automotive production, and mold making.
Hydraulic radial drilling machines are primarily designed for machining operations—such as drilling, enlarging, reaming, spot-facing, and tapping—on large and medium-sized castings, as well as steel workpieces. Characterized by their convenient and flexible operation and wide range of application, these machines are particularly well-suited for the hole-processing of large, multi-holed workpieces in both single-piece and batch production environments; consequently, they are a common fixture in general machining workshops.

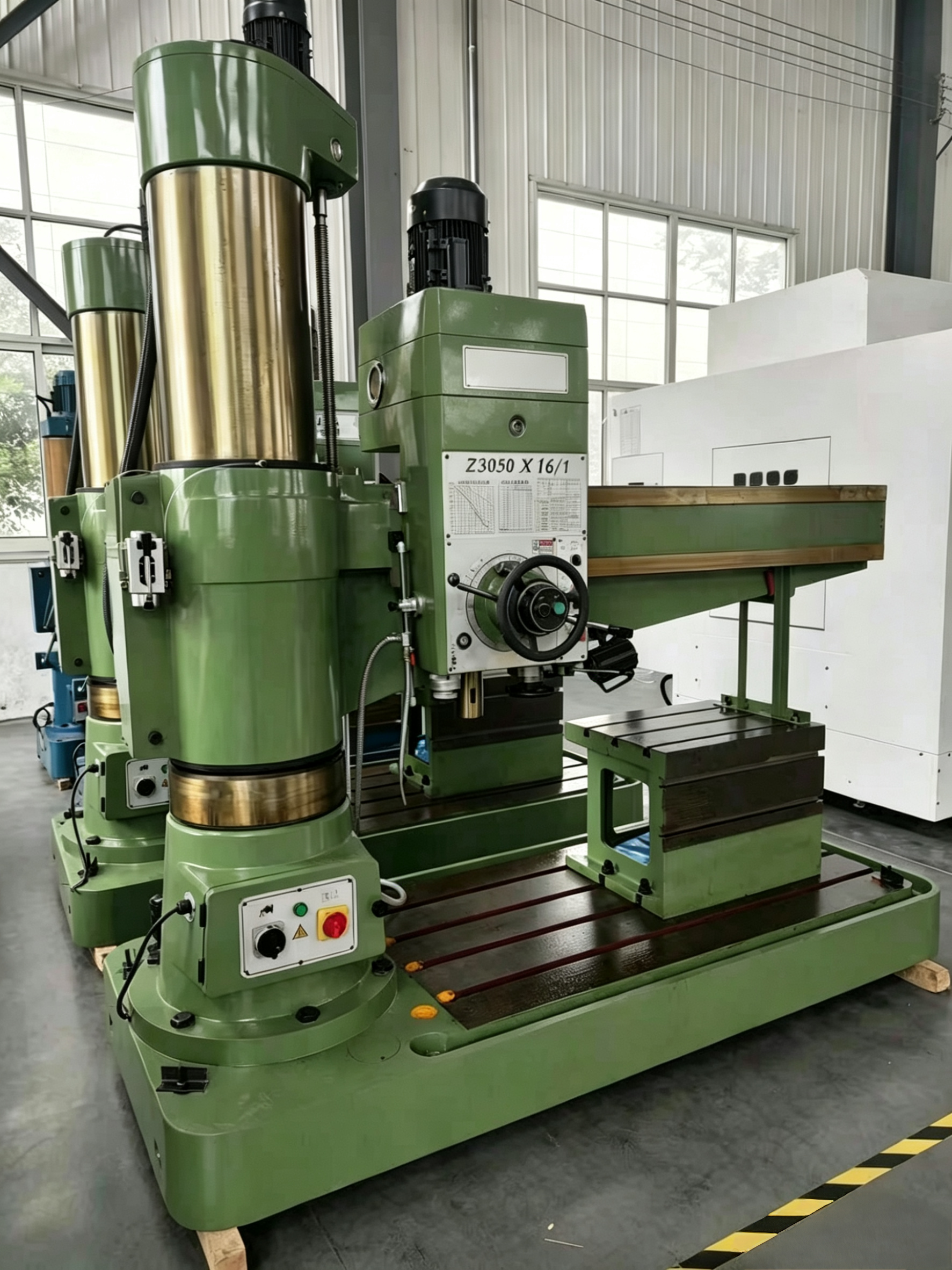

Z3050*16/1 Hydraulic Radial Drilling Machine Technical Parameters ：
Max. drilling dia(mm) | 50 |
Distance from spindle nose to table surface(mm) | 320-1220 |
Spindle center to column generating distance | 350-1600 |
Spindle travel (mm) | 315 |
Spindle Cone | 5 |
Range of spindle speeds(r.p.m) | 25-2000 |
Spindle speed series | 16 |
Spinde feeding range(r.p.m) | 0.04-3.2 |
Spinde feeding step | 16 |
Rocker rotary angle | 360° |
Main motor power (kw) | 4 |
Movements motor power(kw) | 1.5 |
Machine weight | 3500 |
Overall dimensions(mm) | 2500x1060x2800 |
