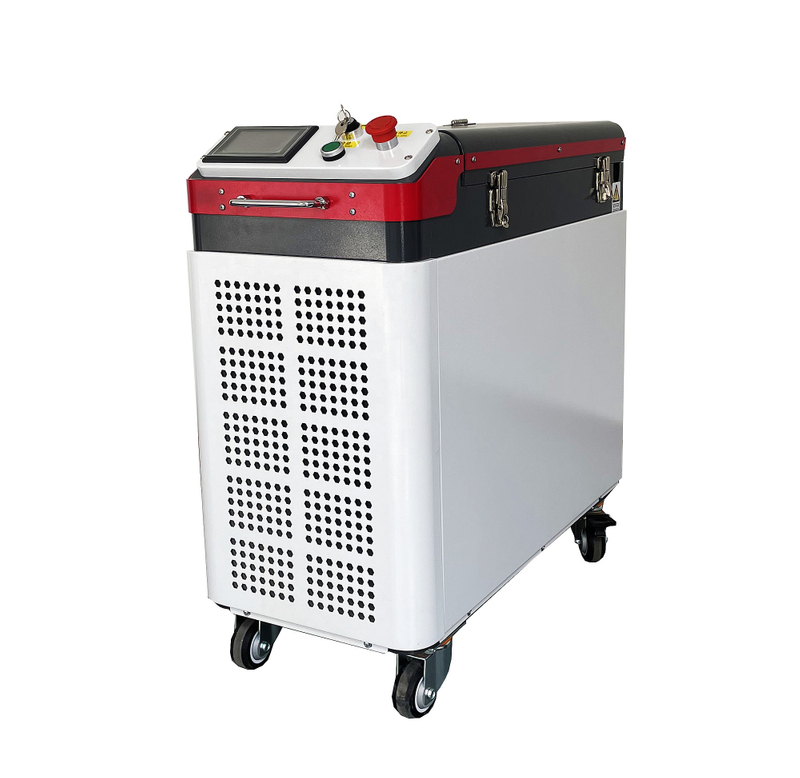

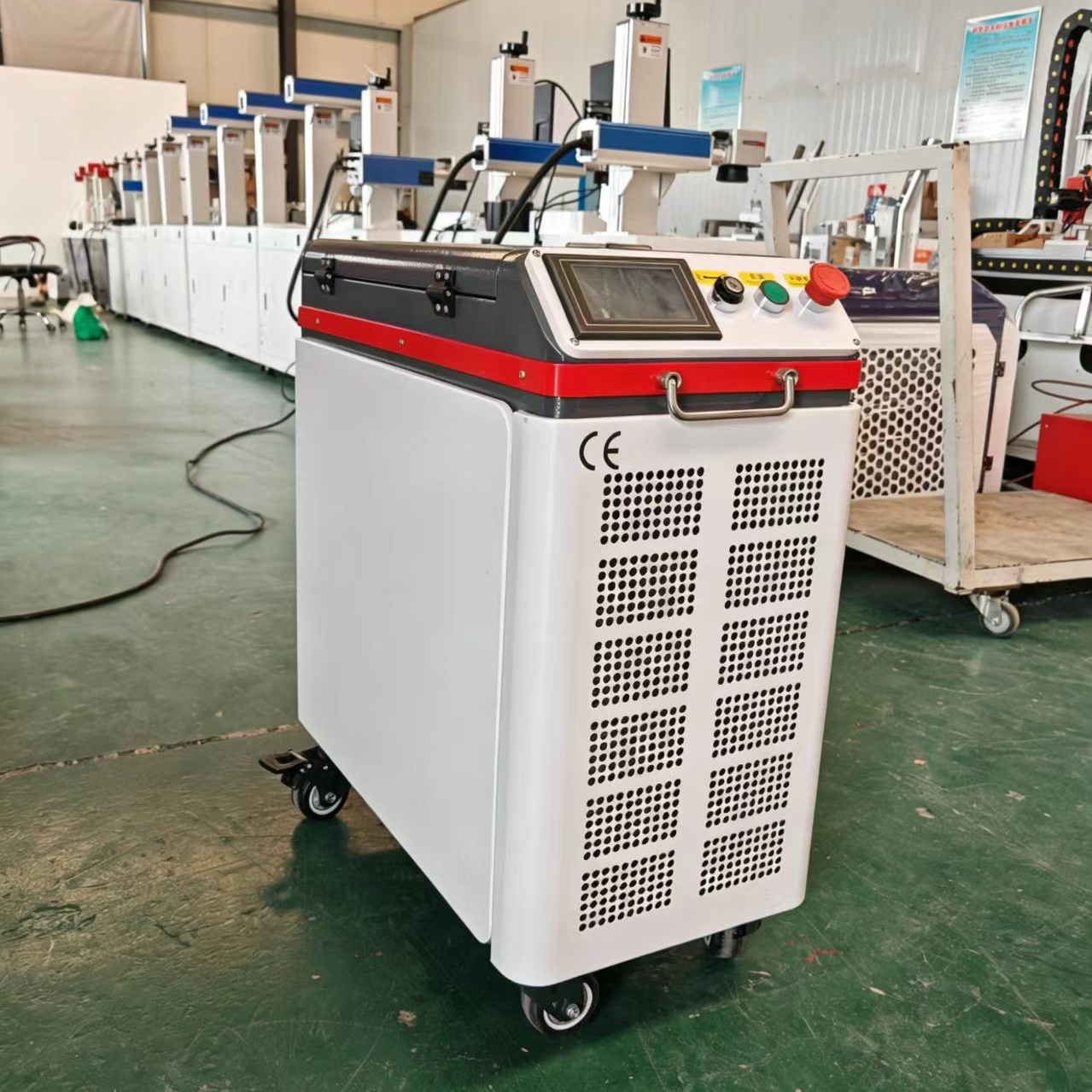

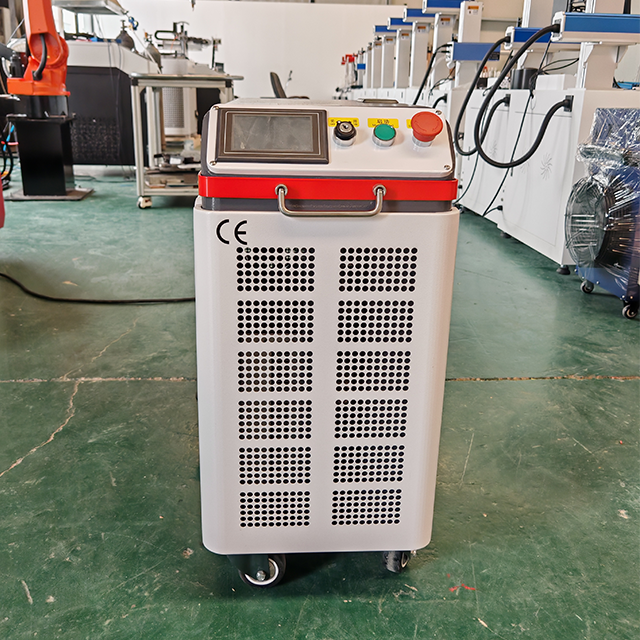

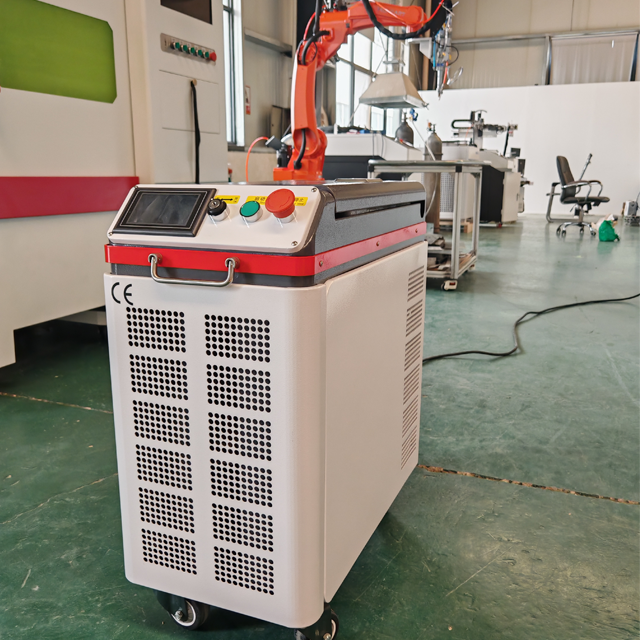

Pulse laser Cleaning Machine

Availability:
Quantity:

Laser Cleaning Machines Introduction :

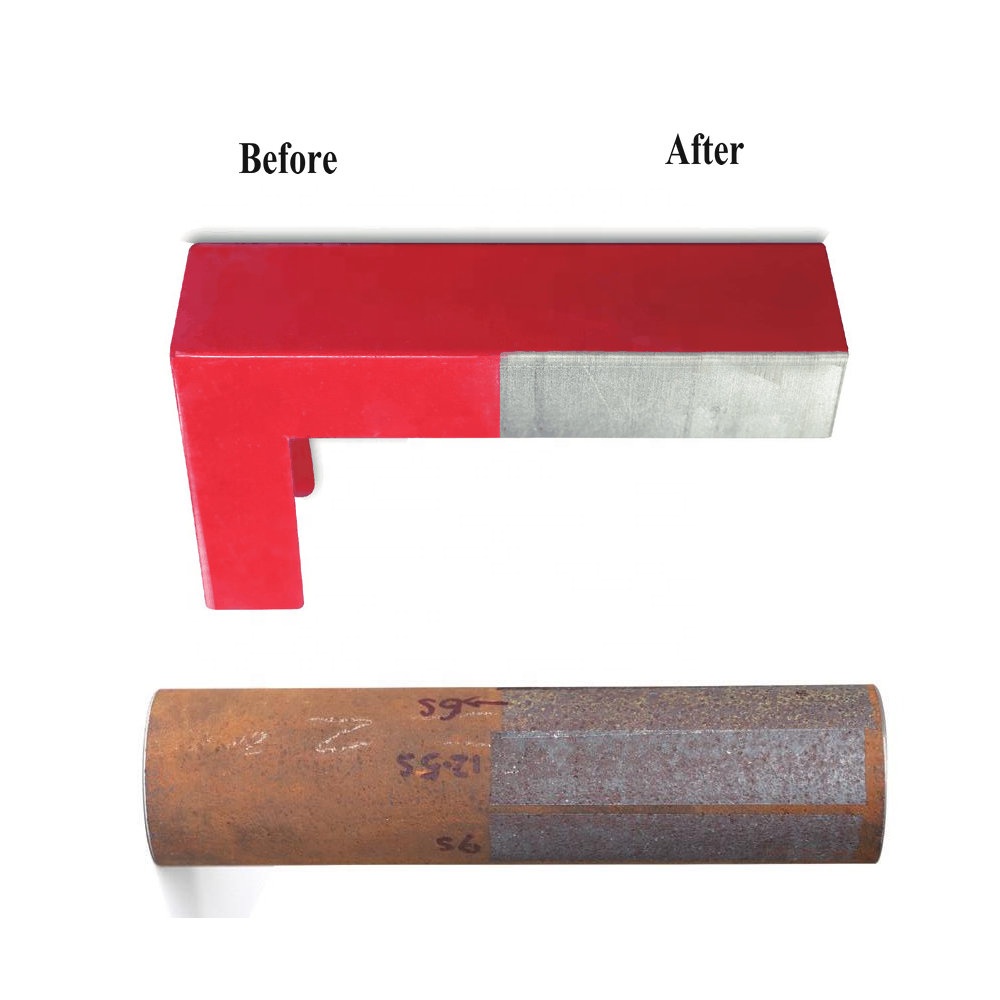

The new generation Laser Cleaning Machine is a high technology product dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material. It can meet the cleaning requirements of complex modeling and fine positioning in the industrial processing field, achieving a cleaner cleaning effect and a lower overall production cost .It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, ship-building and power generation, etc

This device is built-in 100W ,200W, 300W ,500W generator which is classified as a high power Class IV laser instrument. It may emit 1064nm wavelength, peak power up to 15kW ,and the average power is above 100W-500W . This level of light may cause damage to the eye and skin. Despite the radiation being invisible ,the beam may cause irreversible damage to the retina. Laser safety eyewear is not provided with this instrument, but must be worn at all times while the laser is operational. Use appropriate laser safety eyewear when operating this device

TECHNICAL PARAMETERS

Laser power

100W /200W/300W/500W

Output laser Stabilizer

<3%

Focusing Spot Dia (mm)

10-100%

Cleaning Scope Max
Focusing len -160mm

10-90mm

Cleaning Scope Max
Focusing Len 210mm

10-150mm

Wave length

1064nm

Frequency (khz )

20-50

Fiber Cable (m)

5

Laser Head Weight (kg)

2.5

Auto Focus (cm)

+-5

Cooling System

AIR Cooling or Water Cooling

Power Supply

220V

Working Temperature

0-40

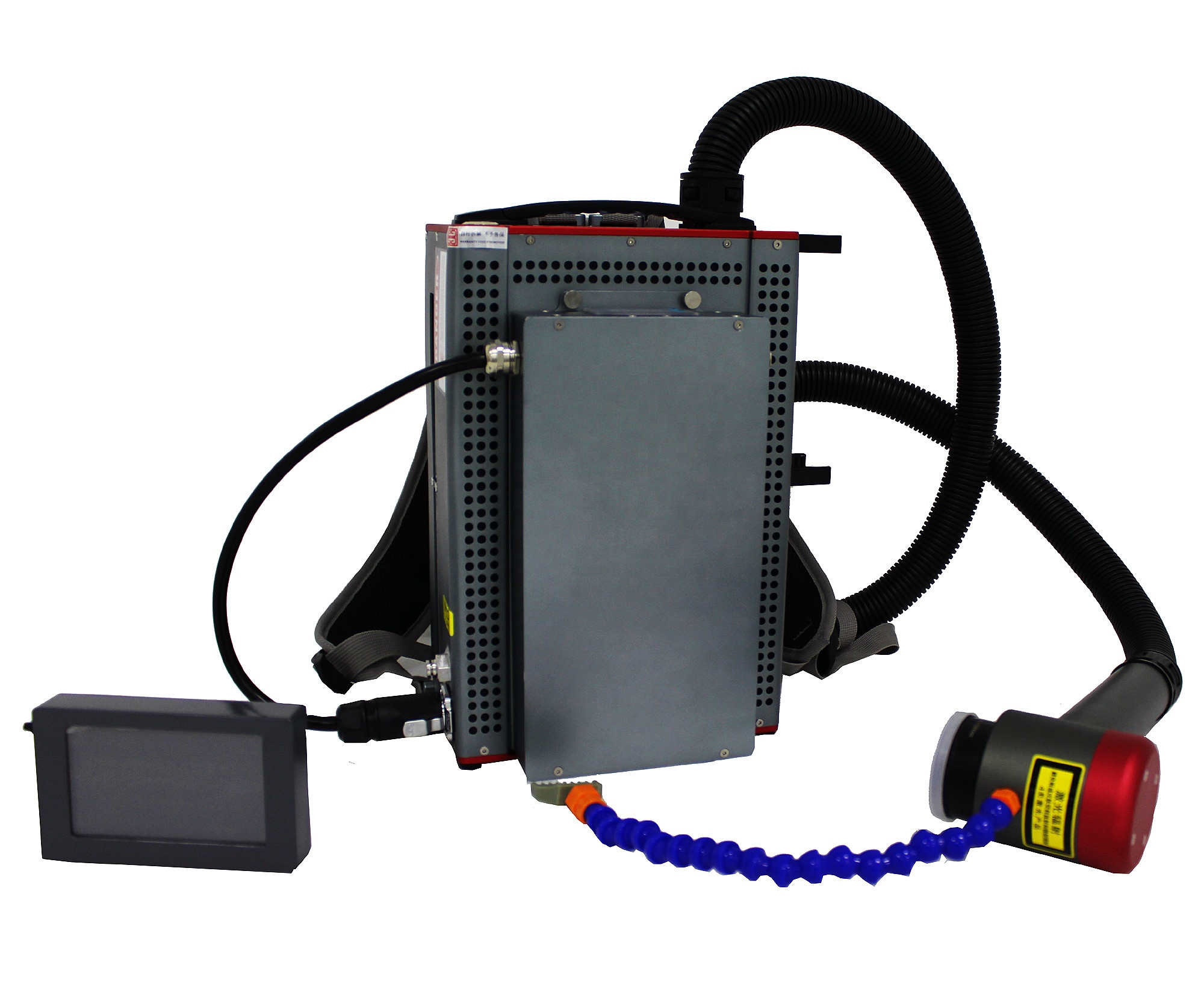

pulse laser Cleaning Machine

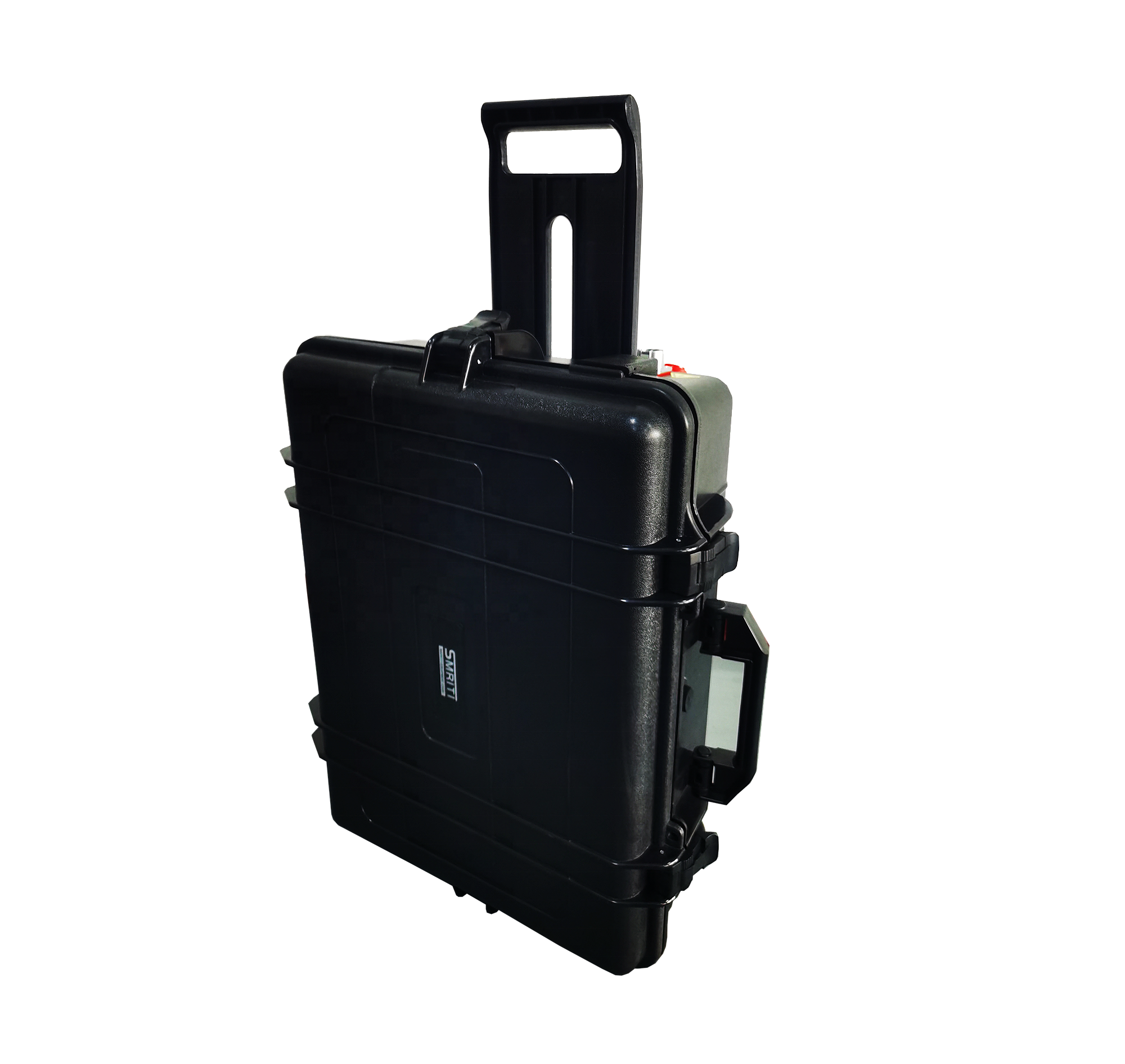

Portable Pluse Laser Cleaning Machine
