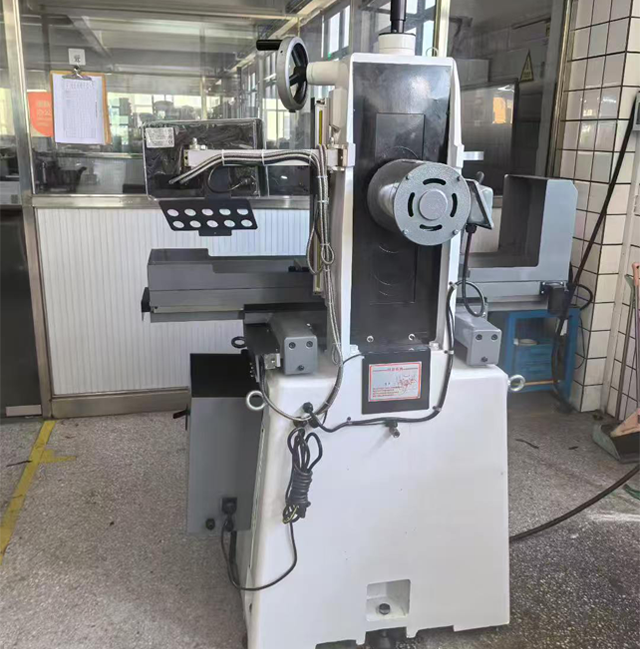

A surface grinder is a precision machine tool that utilizes a high-speed rotating grinding wheel to remove excess material from the surface of a workpiece; it is primarily used to machine flat, contoured, and profiled surfaces on materials such as metal, glass, or ceramics. Its core function is to ensure the workpiece achieves exceptional dimensional accuracy, flatness, and surface smoothness, making it widely used in precision manufacturing sectors such as mold making, automotive engineering, and aerospace.
| Quantity: | |
|---|---|

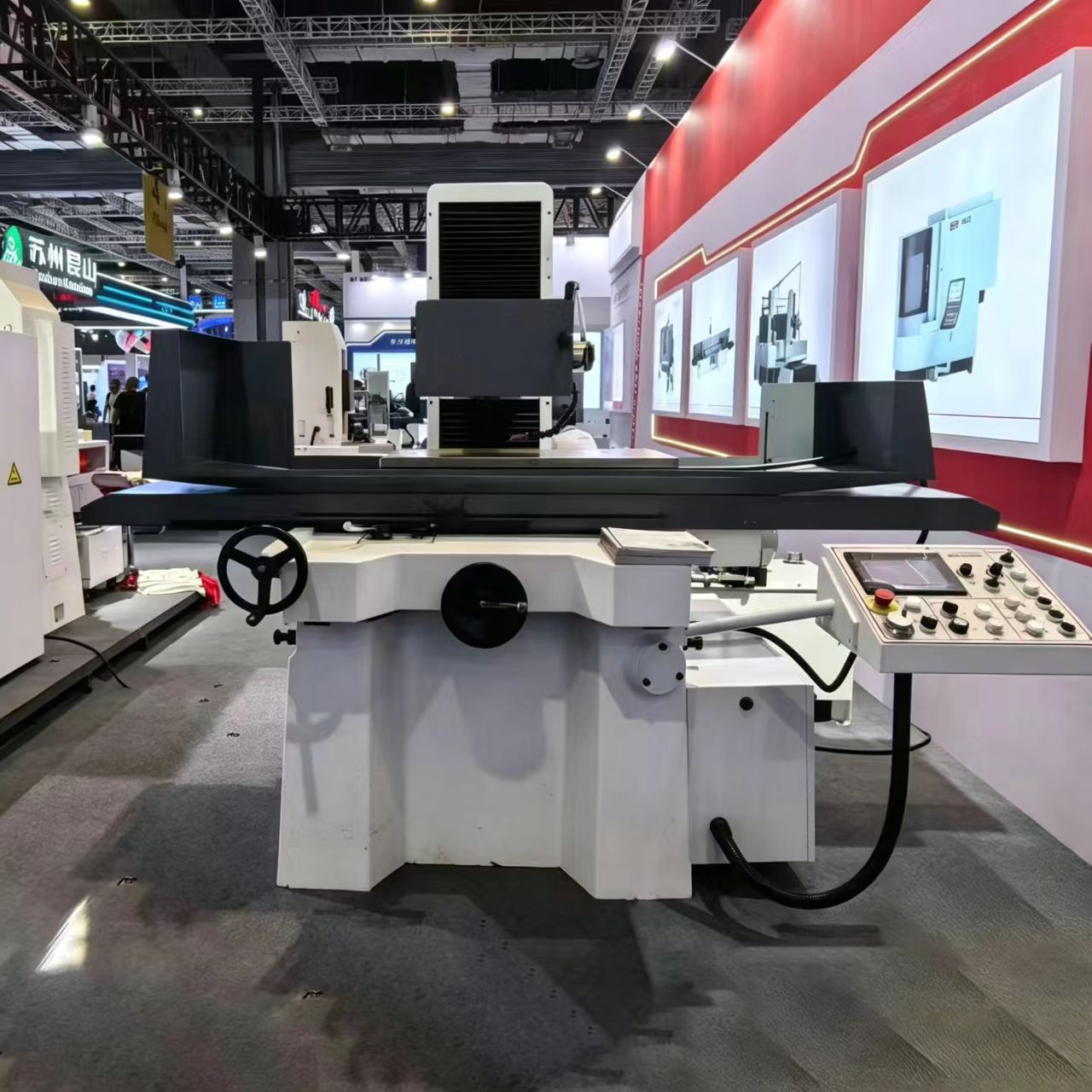

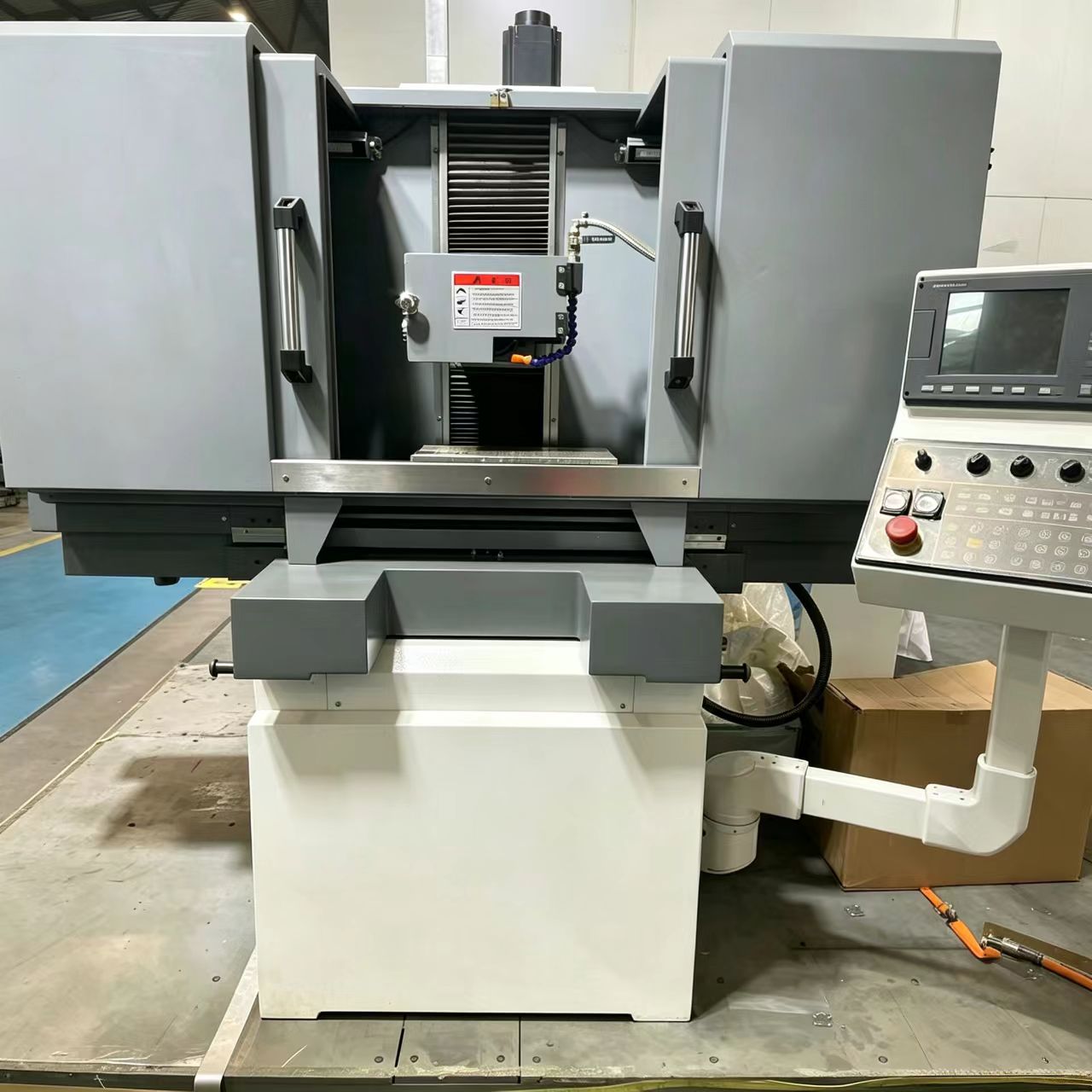

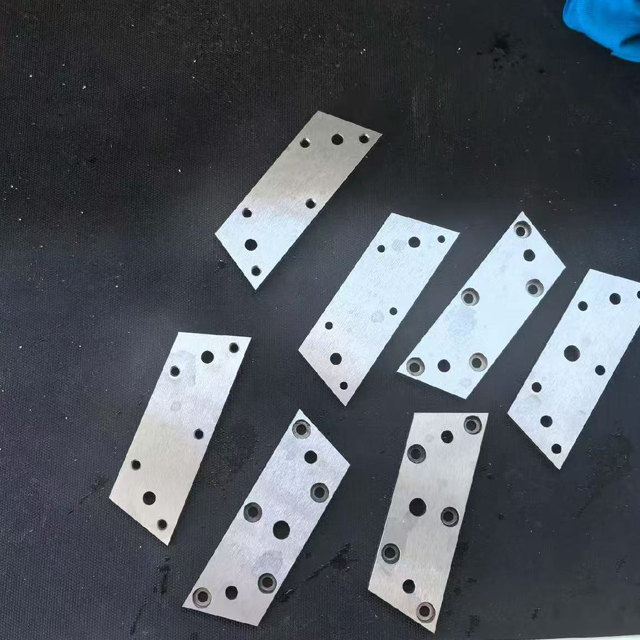

These machines primarily use a rotating grinding wheel to grind workpieces to the required flatness. They are categorized based on table shape into rectangular-table and rotary-table types; the main specifications for rectangular-table surface grinders are table width and length, while for rotary-table grinders, the key parameter is the table diameter. They are also classified by spindle orientation into horizontal-spindle and vertical-spindle grinders; double-disk surface grinders likewise come in both horizontal- and vertical-spindle configurations.

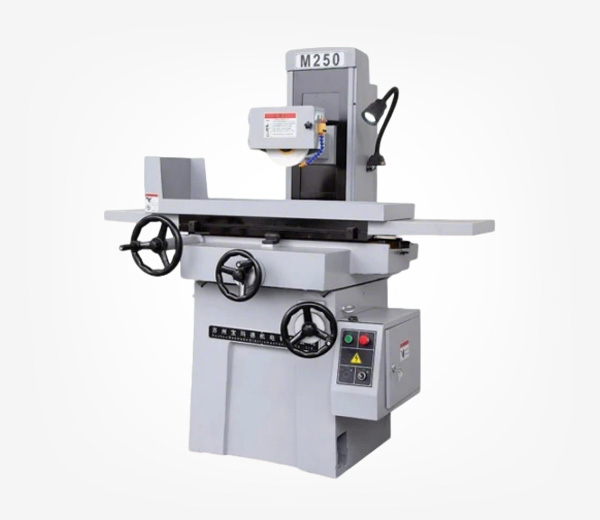

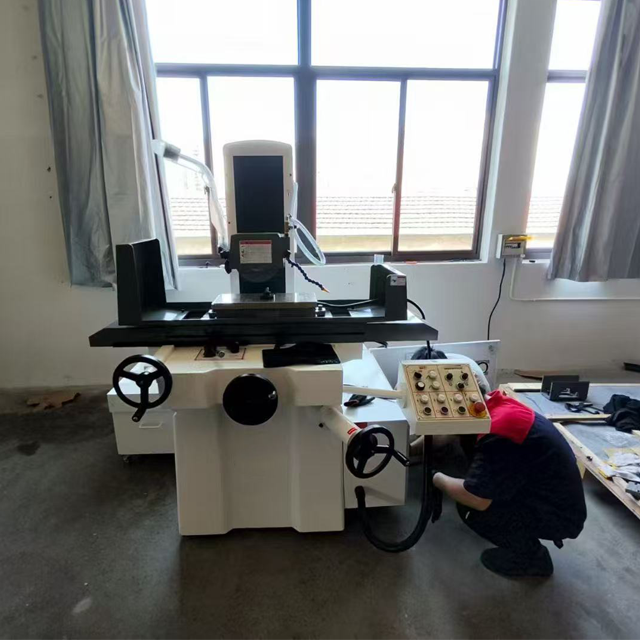

Manual Grinder Models and Specifications
Category | Item | Unit | M618 | M820 | M250 |
Worktable | Table Size | mm | 450*150 | 500*250 | 500*250 |
Max Grinding Size | mm | 450*150*200 | 500*250*270 | 500*250*270 | |
Max Longitudinal Travel of Worktable | mm | 500 | 550 | 550 | |
T-slot of Worktable ( Slots*Slot Width) | mm | 1*14 | 1*14 | 1*14 | |
Spindle Motor | kw | 1.1 | 1.5 | 1.5 | |
Grinding Wheel Shaft Speed | r/min | 2850 | 2850 | 2850 | |
Grinding Wheel Size | mm | 175*13*31.75 | 200*20*31.75 | 200*20*31.75 | |
Machine Weight | Net Weight | kg | 650 | 950 | 1000 |
Gross Weight | kg | 700 | 1000 | 1050 | |
Overall Dimension (LengthWidthHeight) | mm | 1550*1110*1650 | 1700*1300*1800 | 1700*1300*1800 |

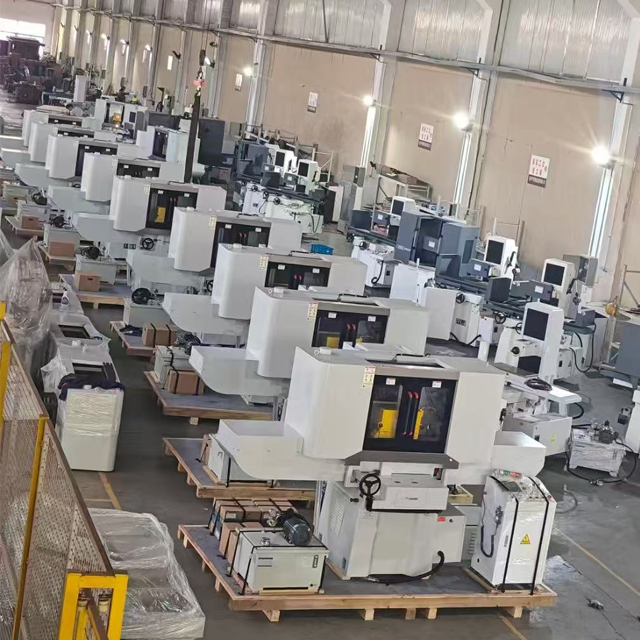

Hydraulic Surface Grinder Specifications Table
Parameter | Unit | MY250 | MY3060 | MY3270 | MY4080 | |
| Table Size | mm | 500*250 | 600*300 | 700*300 | 800*400 |
Max. Grinding Dimension | mm | 560*280*270 | 600*300*275 | 700*300*275 | 800*400*295 | |
Max. Longitudinal Travel of Worktable | mm | 550 | 620 | 700 | 820 | |
T-slot of Worktable | mm | 1*14 | 1*14 | 1*14 | 3*18 | |
Max. Distance from Grinding Wheel Spindle Centerline to Table Surface | mm | 420 | 500 | 500 | 580 | |
| Spindle Motor | kW | 1.5 | 4 | 4 | 5.5 |
Coolant Motor | W | 40 | 40 | 40 | 90 | |
Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 2.2 | |
Cross Feed Unit Motor | W | 90 | 120 | 120 | 150 | |
Total Motor Power | kW | 3.13 | 5.66 | 5.66 | 7.94 | |
| Working Pressure | MPa | 2.5 | 3 | 3 | 3 |
Oil Tank Capacity | L | 80 | 80 | 80 | 100 | |
| Grinding Wheel Spindle Speed | r/min | 2850 | 1450 | 1450 | 1450 |
Weight | Net Weight | kg | 950 | 1400 | 1430 | 2600 |
Gross Weight | kg | 1000 | 1600 | 1630 | 2900 | |
lDimension | Overall Dimension | mm | 1700*1300*1800 | 1900*1500*1950 | 1900*1500*1950 | 2260*1790*1917 |
